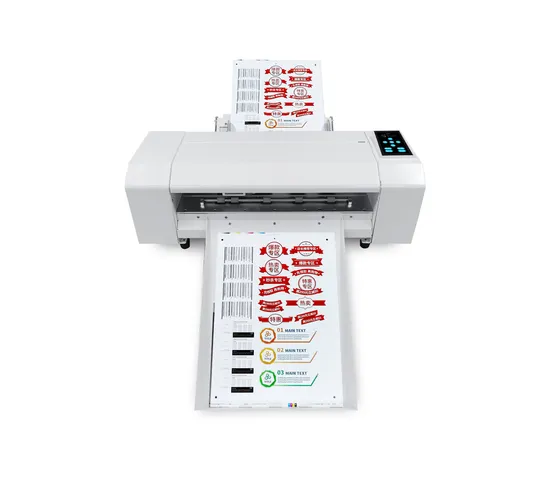

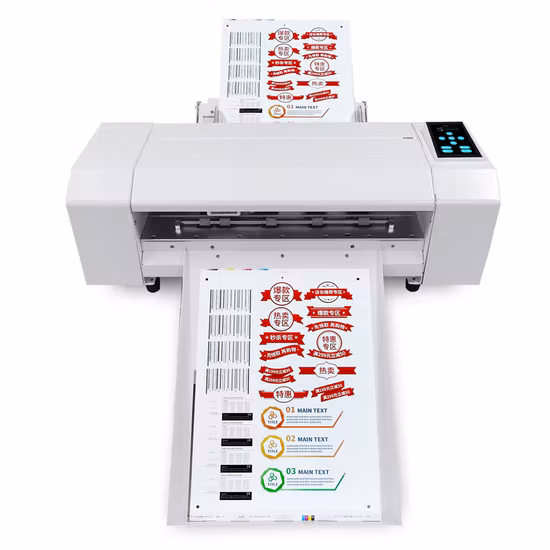

Saga A3+ A3 A4 Sheet Digital Sticker Cutter/Adhesive Sticker Sheet Label Die Cutting Machine
Automatic high quality sheet cutter to cut stickers The latest Saga Sheet Auto Feeding Cutter has been upgraded with CCD
Basic Info
Model NO. | SG-SCA3+ |
Computerized | Computerized |
Automatic Grade | Automatic |
Application | Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Cardboard |
Max Cutting Speed | 960mm/S |
Max Cutting Force | 750g |
Maximum Sheet Size | A3+,483*330mm |
Maximum Cutting Size | 475mm*320mm |
Maximum Paper Weight | 350g |
Cutting Control System | Digital Servo Motor |
Positioning Sensor Type | Digita Camera (CCD) |
Cutting Media Types | Self-Adhesive Sticker, Vinyl, Wrap etc. |
Actual Dimensions | 655mm*494mm*335mm |
Package Dimensions | 850mm*700mm*550mm |
Gw/Nw | 35kg/50kg |
Mechanical Resolution | 0.02mm |
Power | 150W |
Certification | CE, SGS, RoHS, Is09001 |
Transport Package | Wooden Package |
Specification | 655mm*494mm*335mm |
Trademark | saga |
Origin | Hefei China |
HS Code | 84411000 |
Production Capacity | 10000PCS |
Product Description
Automatic high quality sheet cutter to cut stickersThe latest Saga Sheet Auto Feeding Cutter has been upgraded with CCD Camera which allows the
machine to read QR code for registration and it increases the scanning speed by 100%+.
1. The maximum cutting area is A3+ (483mmX330mm),catering to market demands perfectly2. Optimized auto feeding system, more efficiency and no jam3.The Interoperable Multi-sensor guarantees excellent cutting results4.Optimized sheet marking maximized the sheet utilizationModel Name | SG-SC A3+ |
Cutting control system | Digital Servo motor |
Positioning sensor type | Optical Sensor |
Scanning code type | Bar code |
Sheet feeding | Up to 100 pcs denpends on thickness of the paper |
Sheet feeding method | Friction feed |
Scanning speed | 5-30s |
Maximum sheet size | 483mm×330mm |
Maximum cutting size | 475×320mm |
Minimum cutting character | About 5mm2 |
Maximum actual cutting speed | 960mm/s |
Maximum cutting force | 750g |
Maximum paper weight | 350g |
Control panel | LCD Touch with keys |
Mechanical resolution | 0.02mm |
Programmable resolution | HGPL 0.025mm |
Package dimensions | 850mm×700mm×550mm |
Actual dimensions | 655mm×494mm×335mm |
Net/Gross weight | 35KG/50KG |

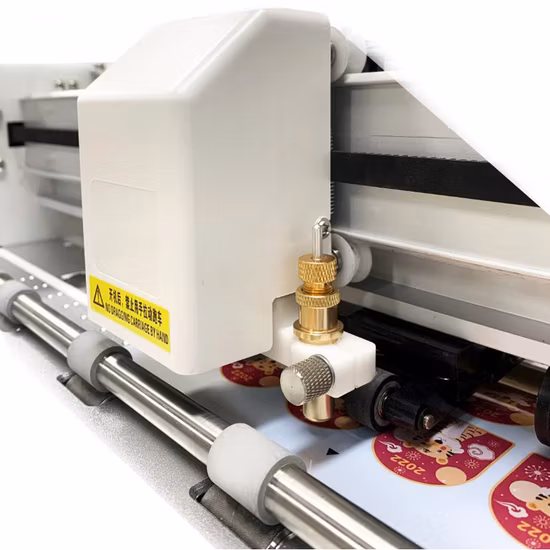

Tools | Single tool holder,with one blade and one pen |
Software and compatibility | |
Software and compatibility | SignMasterTM Pro, PC only, compatible for Windows7,8,10 (USB interfaces ) Corel Draw/Illustrator Plug in, PC only(SD interfaces) |
Power and working environment requirements | |
Voltages | 100V~240V 50/60Hz |
Power | 150W |
Operation environment | Temperature +5ºC to +35ºC(Fahreheit 41-95),Humility 30%-75%(Non-condensing) |
This parameter is subject to change without prior notice. The company reserves the right of final interpretation
